- The Carbo Ratchamatic; is a load-sensing ratchet block that rolls freely in both directions under low loads and automatically engages the ratchet as loads increase.
- Shifting between ratchet and light-air modes is seamless.
- Sheave Diam (mm)=75 Sheave Diam (in)=3
- Max Rope Diam (mm)=12 Max Rope Diam (in)=0.5
- BL (kg)=816 BL (lb)=1798 MWL (kg)=816 MWL (lb)=1798

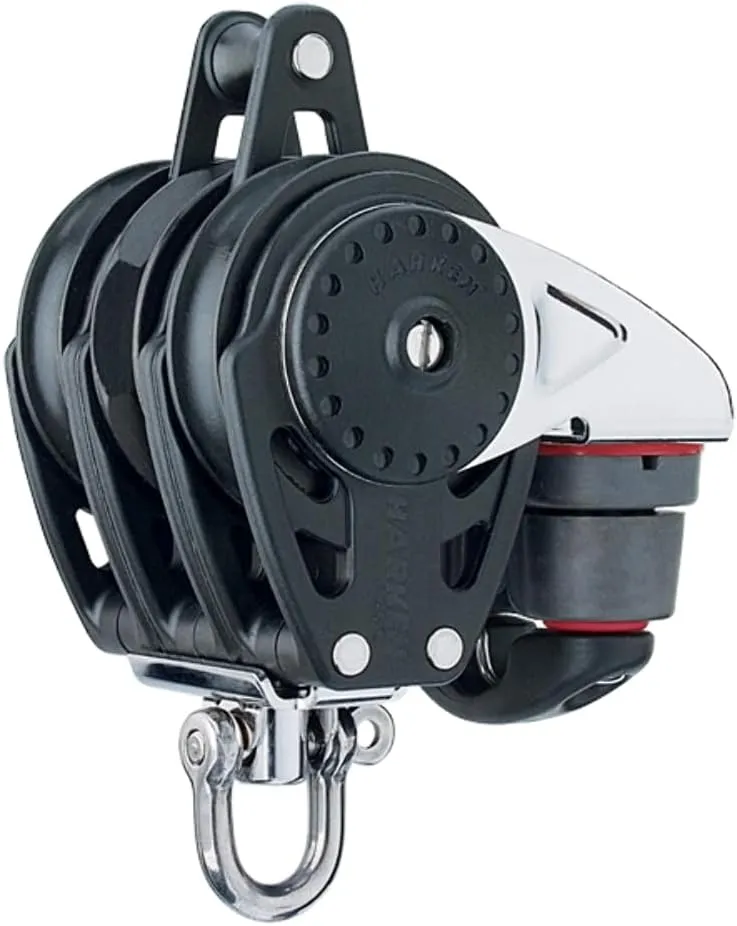

Harken 75mm Triple Carbo Ratchamatic Block w/Cam & Becket 2686
Harken 75mm Triple Carbo Ratchamatic Block w/Cam & Becket 2686
- Weight (g): 896
- Max. line dia. (in): 7/16
- Max. line dia. (mm): 12
- Shackle pin dia. (in): 5/16
- Shackle pin dia. (mm): 8
- Max. working load (lb): 1800
- Max. working load (kg): 816
- Breaking load (lb): 4500
- Breaking load (kg): 2041
- Holding power w/180 degree wrap 50 lb (23 kg): 15:1
- Description: Triple/150 Cam-Matic
- Sheave dia. (in): 2 15/16
- Sheave dia. (mm): 75
- Length (in): 6 1/2
- Length (mm): 165
- Weight (oz): 31.6
