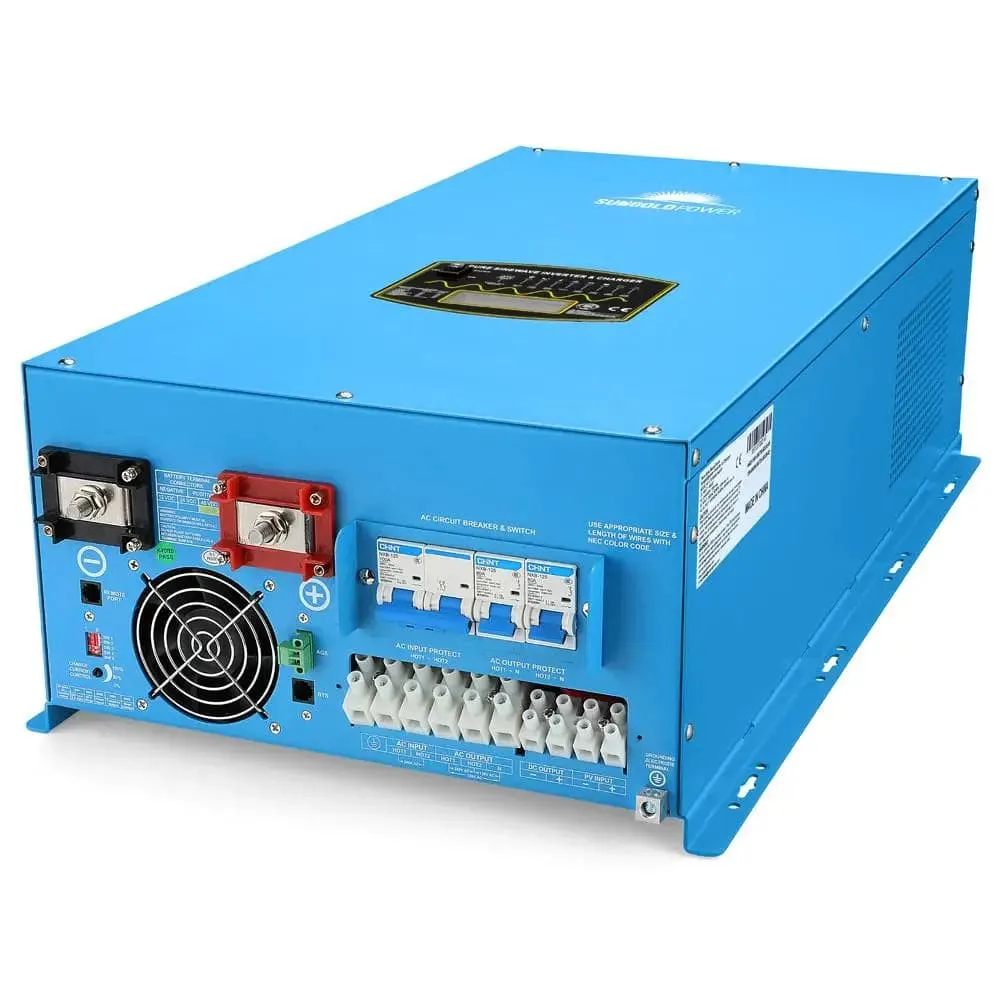

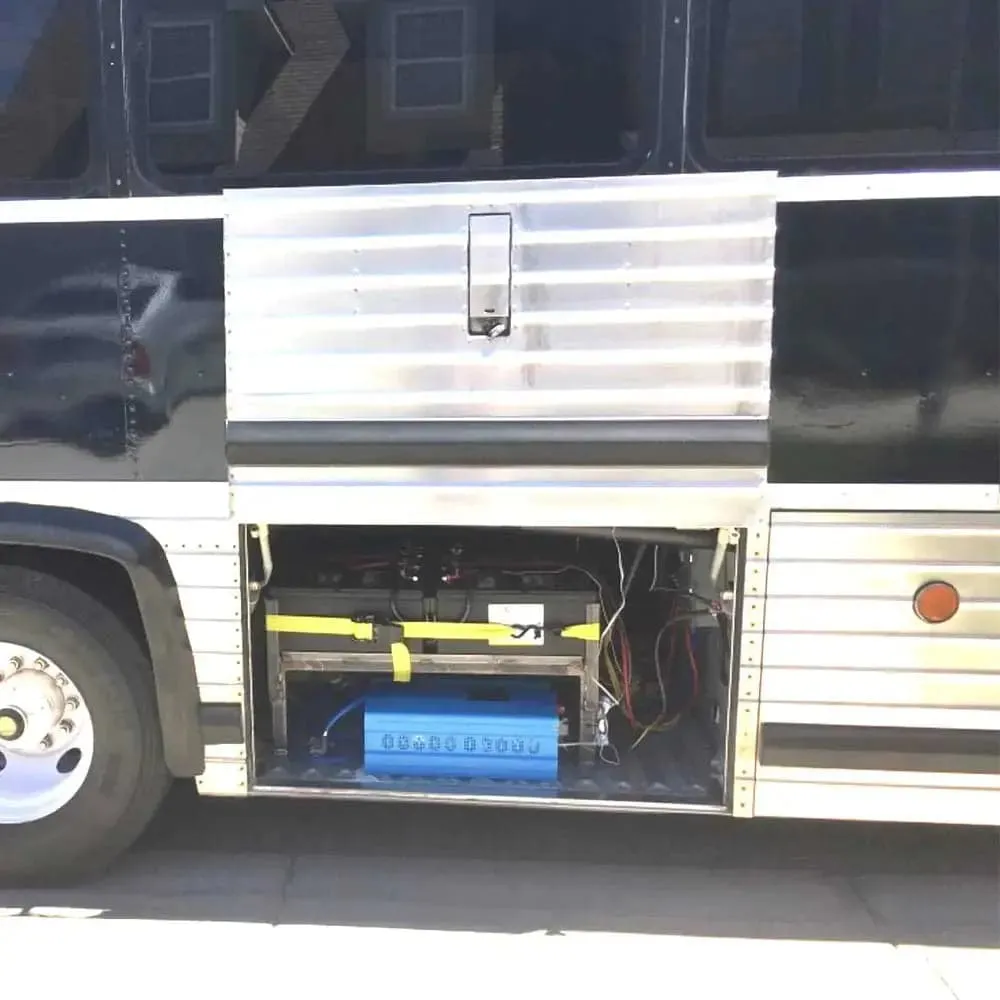

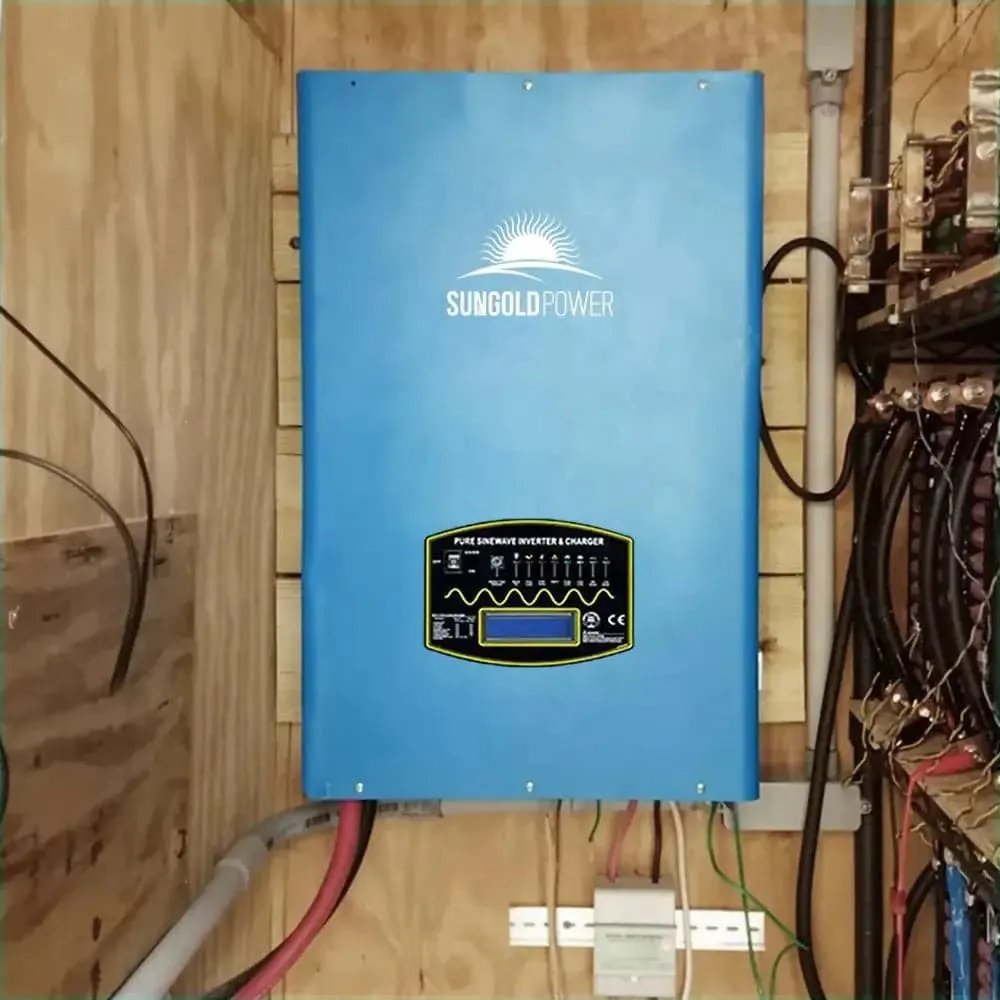

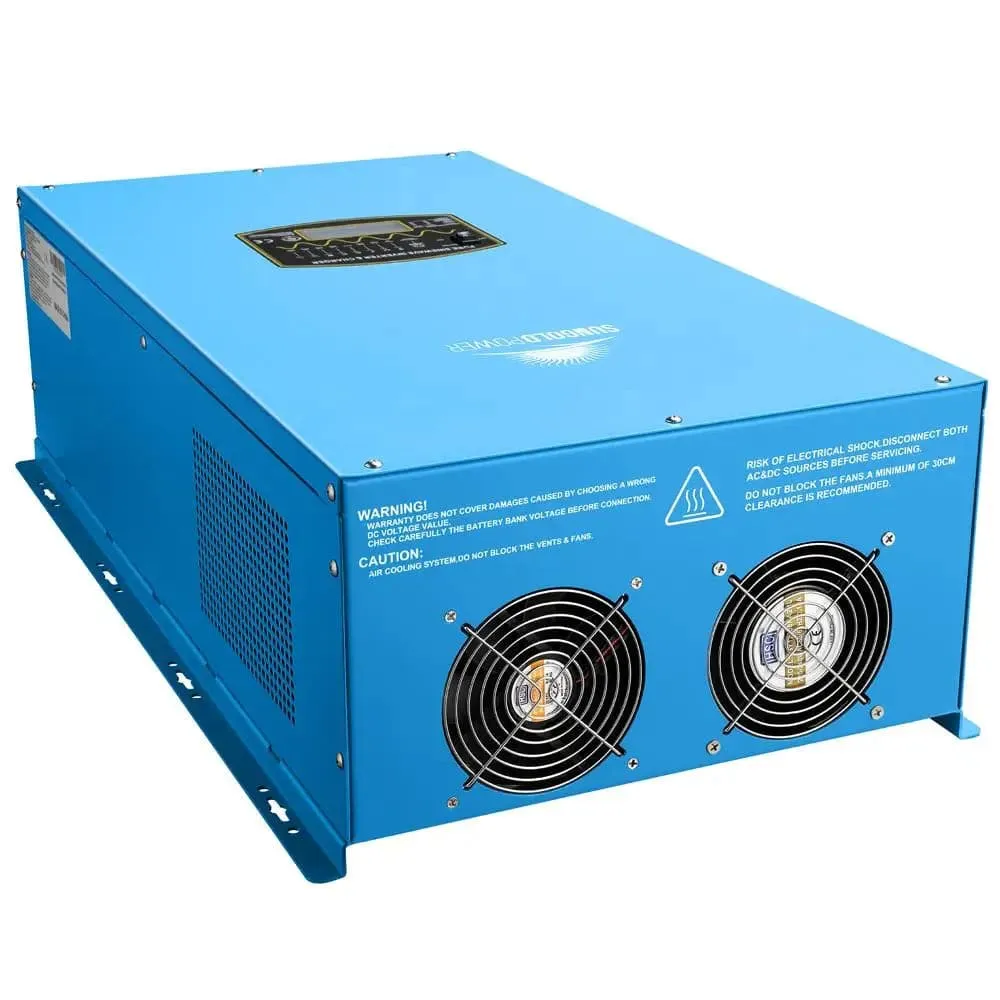

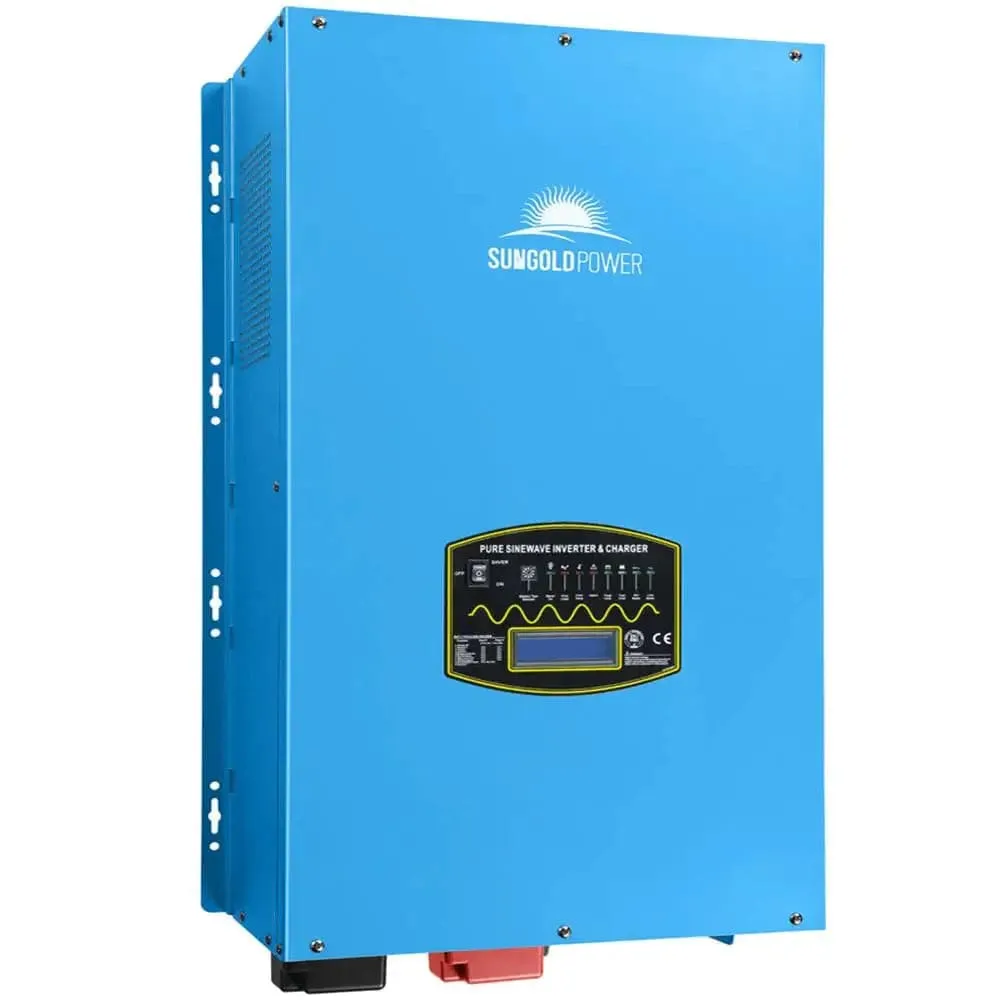

Sungoldpower 10000W 24V inverter is built to run the whole house(small home), business office, or large RV, which is perfect for using renewable solar and operating as an off-grid home and business backup power supply. The split-phase inverter requires 240VAC input and provide 110/120VAC OR 220/230/240VAC output power for all kinds of appliances.
- Continuous Output Power :10.0KW
- Surge Rating(20s) :30.0KW
- Output Waveform: Pure Sine Wave
- AC Output Voltage: 120V and 240V
- AC Input Voltage: 240V
- DC Battery Voltage: 24Vdc
- Solar charger Current: 60Amp
- AC Battery charger: 120±5Amp
- Output Frequency: 50Hz /60Hz
- Typical transfer Time: 10ms(Max)
This inverter charger is built with UPS function to provide uninterrupted power to run household electric devices. The solar inverter comes with an internal transfer switch, so you don’t have to do anything when the power goes out. All the selected devices will be automatically connected to the back-up power source. You will not even notice that the power cut happened.
★ It is a built-in 120 amp battery charger uses AC power, from the grid or from a generator, to recharge different kinds of battery bank.
★ Built-in solar controller, Maximum solar input voltage 145V, Maximum solar input current 60A, can also connect with external controller.
★ Low Frequency Inverter, High Quality, your best choice for your 24V home system.
- LF-PV Series Pure Sine Wave Inverter is a combination of a 10000 watt inverter, AC charger, Mppt solar charger and Auto-transfer switch into one complete system.
- The split-phase inverter requires 240VAC input and can provide 120VAC or 240VAC output power for all kinds of appliances, and it can output 50 or 60Hz via the SW4.
- AC/Battery Priority: Our inverter is designed with AC priority by default, you can choose the battery priority by SW5 switch.
- Features: Smart Remote Control, Automatic Generator Starting (AGS), Support Solar Panel with MPPT Function, Suitable for different kinds of batteries.
- Application: for all the kinds of load: refrigerators, freezers, microwaves, dryers, air conditioners, pumps and all the big home and business applications.
Main Features:
10KW split phase pure sine inverter charger DC 24V AC 240V input AC output 120V/240V
Auto Generator Start (AGS)
Support Solar Panel with MPPT Function
Include Battery Temperature Sensor (BTS) and Remote Control

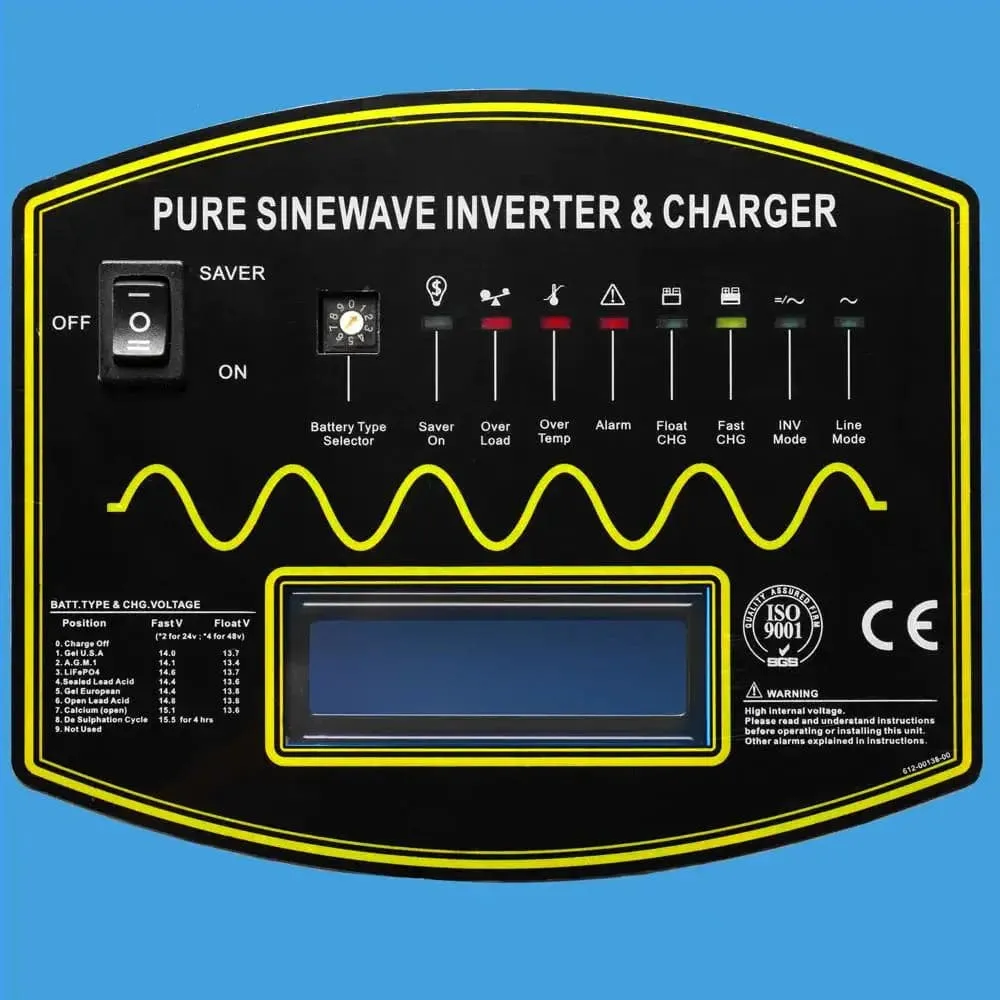

8 kinds of battery voltage selection ( lithium LiFePO4, gel, AGM and lead Acid batteries）
Compatible With All kind of Home & Office Appliances
Powerful Charge Rate Up to 120Amp, Selectable From 0%-100%
Built-in transfer switch and battery charge, backup or off grid power solutions
AC/Battery Priority Mode, Designates the Inverter-Preferred UPS Configuration
4-step Intelligent Battery Charging, PFC (Power Factor Correction) for Charger
8 ms Typical Transfer Time Between Utility & Battery, Ensure Power Continuity
15s Delay Before Transfer when AC Recover, Protection for Load when Used with Generator
Main Specification：
Continuous Output Power :10.0KW
Surge Rating(20s): 30.0KW
Output Waveform: Pure Sine Wave
AC Output Voltage: 120V and 240V
AC Input Voltage: 240V ( not suitable for AC 120V input )
DC Battery Voltage: 24Vdc
Solar charger Current: 60Amp
AC Battery charger: 120±5Amp
Output Frequency: 50Hz /60Hz
Typical transfer Time: 10ms(Max)
DC Input:
Nominal Input Voltage :24.0Vdc
Minimum Start Voltage :20.0Vdc / 21.0Vdc
Low Battery Alarm :21.0Vdc / 22.0Vdc
Low Battery Trip :20.0Vdc / 21.0Vdc
High Voltage Alarm :32.0Vdc
Low Battery voltage recover :31.0Vdc
Power Saver on Idle Consumption: 35W
Power Saver off Idle Power:150W
Charger:
Output Voltage: Depends on battery type
Battery Initial Voltage for Start Up: 20-31.4V
Over Charge Protection Shutdown :31.4V
Charger Breaker: 80A
Input Voltage Waveform :Sine wave (Grid or Generator)
AC input range:184-253Vac/140-270Vac
Nominal Input Frequency :50Hz or 60Hz (Auto detect)
Solar Charger controller: (you can disable our solar controller, and connect with external solar controller）
Solar Input Voltage Range: 30-145Vdc
Max.PV Open Circuit Array Voltage: 145Vdc
Rated Charge Current: 60A
Over Charge Disconnection: 29.6V
Over Charge Recovery :27.2V
Over Discharge Disconnection:21.6V
Over Discharge Reconnection :24.6V

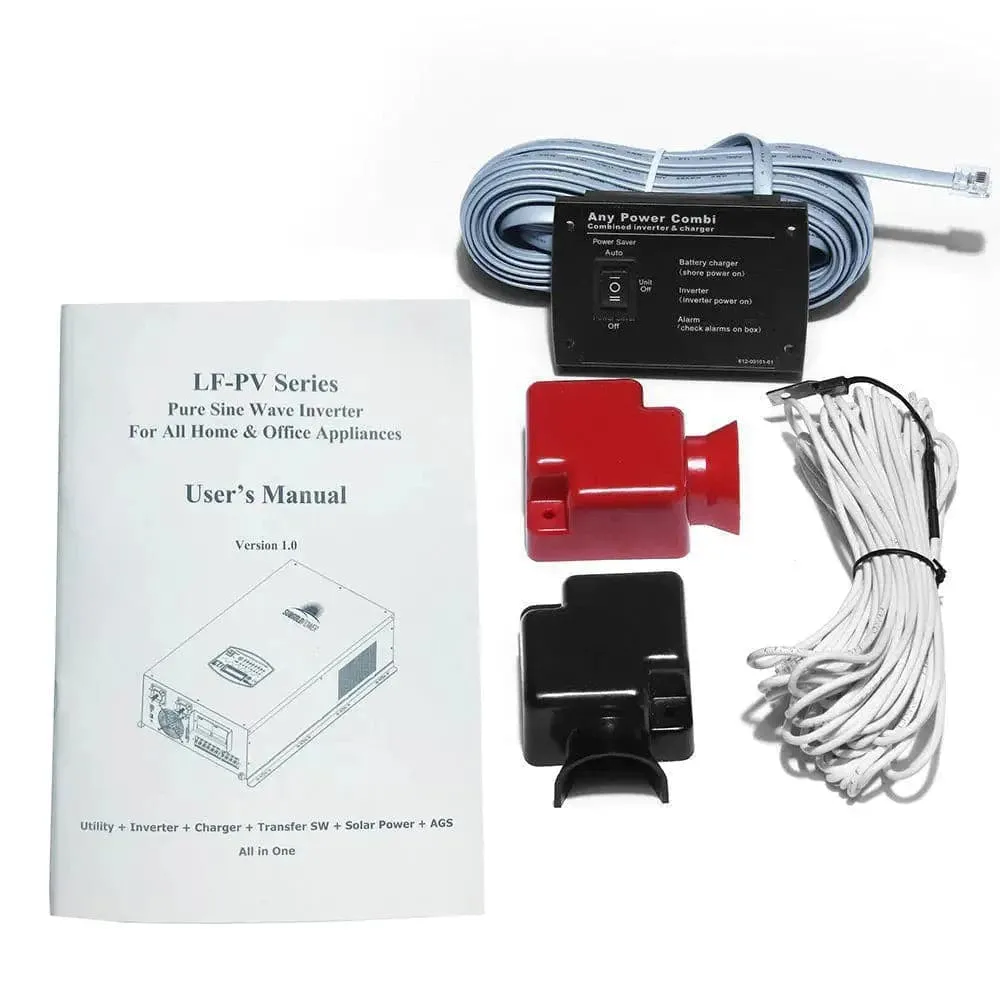

Packaging:
10000W 24V Split Phase Pure Sine Wave Solar Power Inverter
English Manual
Remote Control
BTS Cable
Unit Weight: 149 LB
Unit Size: 27.6 x 16.5 x 8inch
Shipping Weight: 183LB
Shipping Size: 33 x 21.3 x 16inch
Frequently Asked Questions
1. How do you connect this to a home with the multiple phase system?
It only has dual phase output, 120V and 240V, it can't work with the multiple phase system.
2. What is power consumption of the inverter with no load?
The power saver on idle consumption is 35W and power saver off idle power is 150W.
