- 【Customizable】Our shell and tube heat exchangers can be customized in dimension, water connector, and capacity. If you have any special requirements, please let us know.
- 【Material】The material of cooling pipe is made up of 99.96% pure red copper tubes as the optimum heat dissipation and the heat transfer rate is more than 0.95.

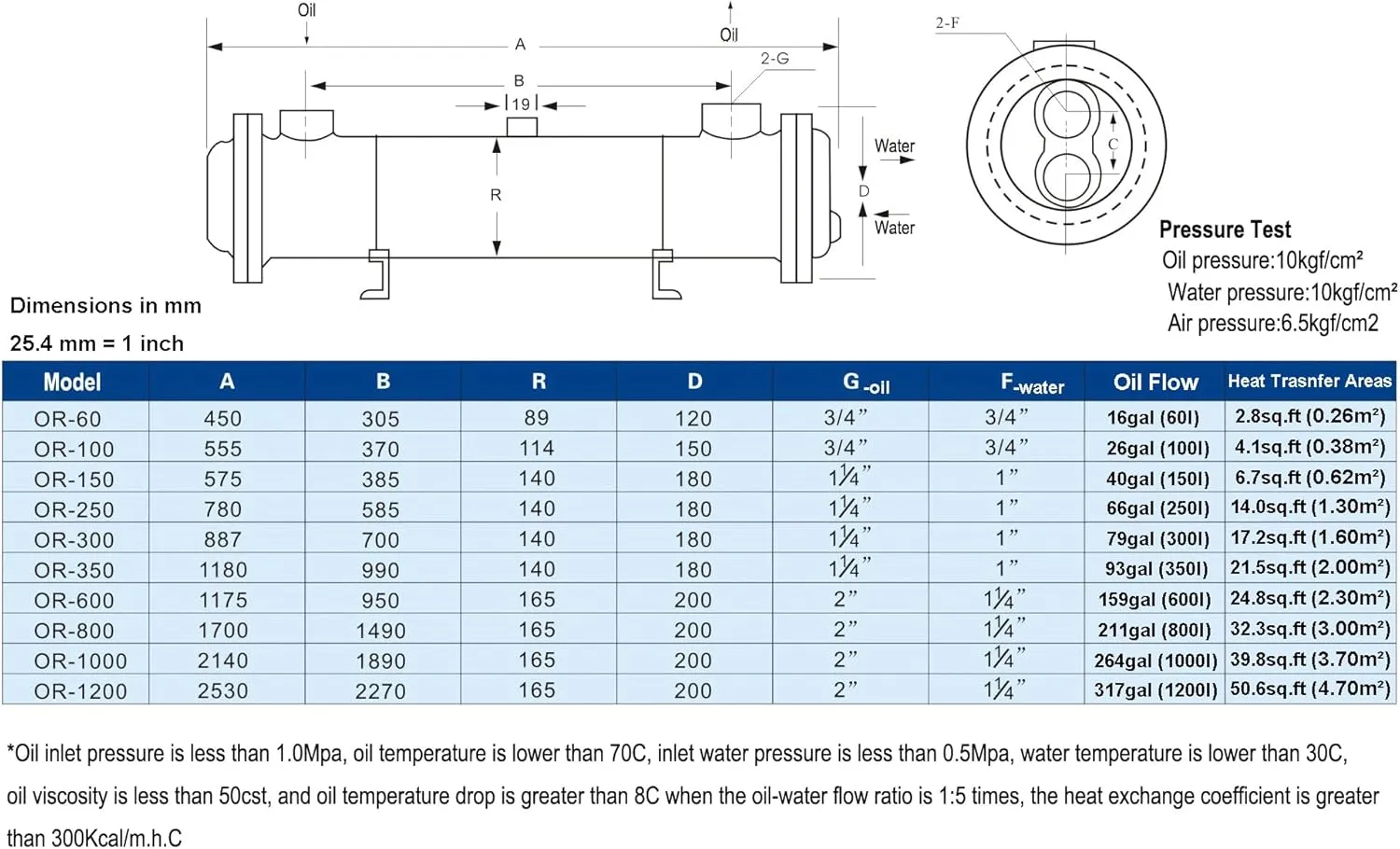

- 【Parameter】Heat Transfer Areas: 2.8 sq.ft (0.26 m2), Oil Flow: 15.9 GPH ( 60 L/hr), Dimensions:17.7"x4.7"x4.7"---with 3/4" ports
- 【Applications】Queleco oil cooler is widely used for plastic injection molding machine, air compressor, die casting machine, hydraulic system and other industries such as coal industry, chemical industry, textile industry and so on.
- 【Warranty】Our heat exchanger has a 1-year warranty. If you have any questions about the product, please feel free to contact us.

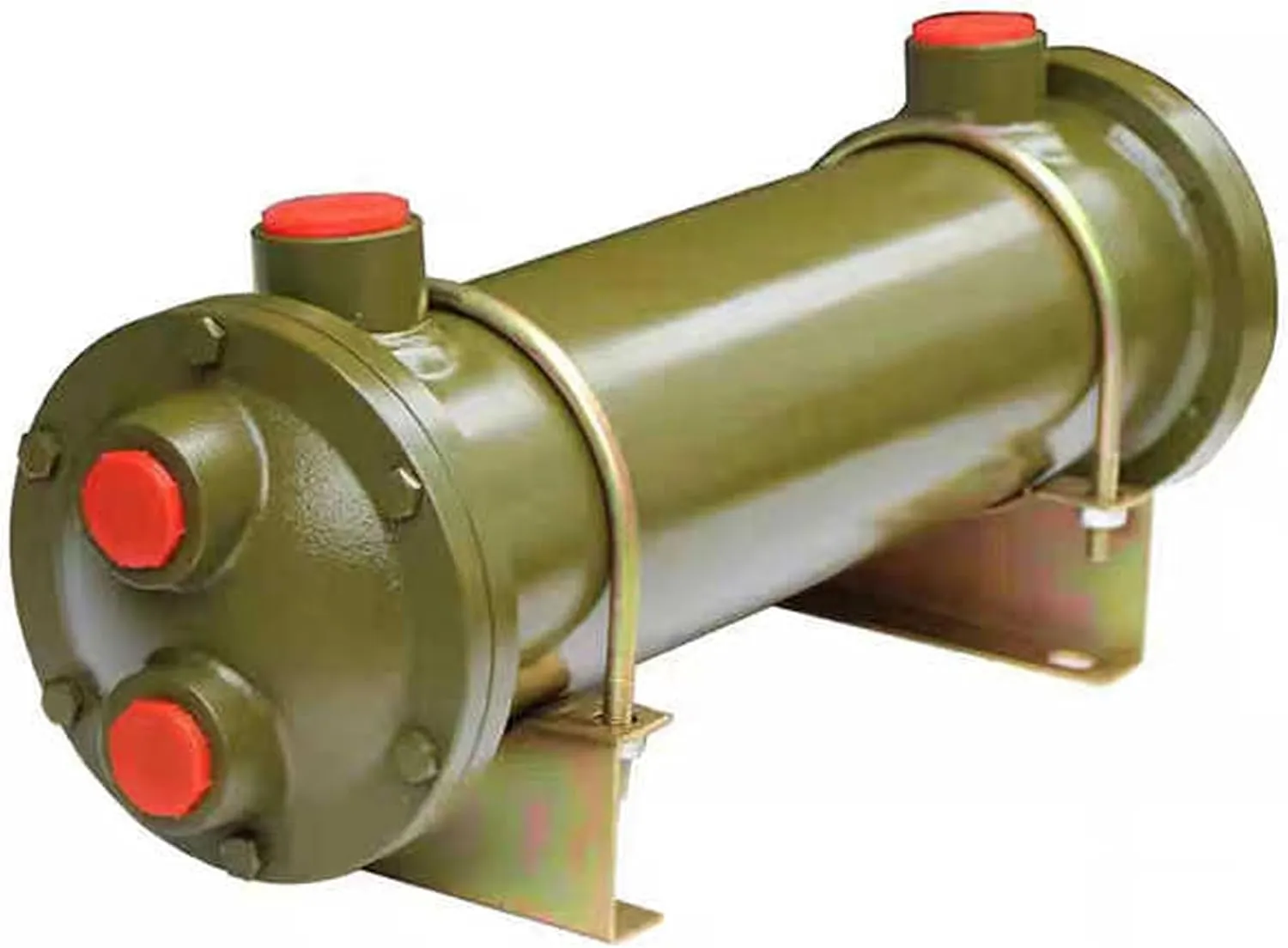

QUELECO Shell And Tube Oil Cooler Copper Tube Water Cooled Heat Exchanger OR 60 with 3/4" Ports for Industrial Hydraulic Injection Mould Machine
Item No.: OR-60
Oil Flow: 16 gal (60L)
Heat Transfer Areas: 2.8 sq.ft (0.26 m2)
Material:Carbon steel red copper tube

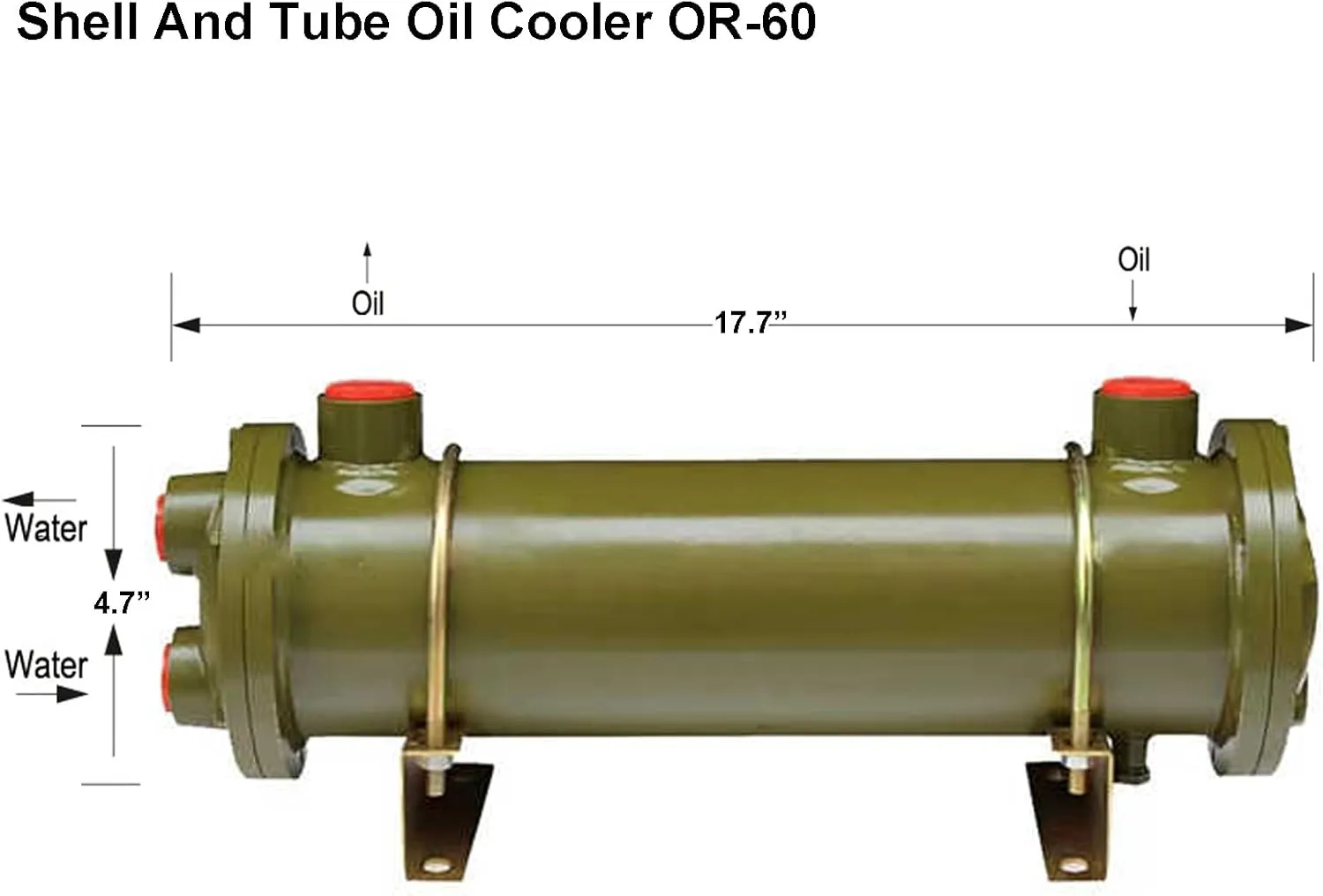

Dimensions:17.7"x4.7"x4.7" (450x120x120mm)
Oil/Water Ports: G 3/4" female thread
Applications:
Queleco oil cooler is widely used for plastic injection molding machine, air compressor, die casting machine, hydraulic system and other industries such as coal industry, chemical industry, textile industry and so on.
