Description

Features:

• Built-in Arc Fault detection (AFD) and Rapid Shutdown (RSD)
• P65 waterproof and dustproof for various working conditions
• Support multiple input & output-Split phase 208/240Vac or single phase 230Vac.
• Built-in AC coupled function
• Built-in Wi-Fi for mobile monitoring (APP is available).
• Accepts second input power source, generator input compatible.
• Optional external CT sensor to guarantee 100% self-consumption.
• Built-in communication port for BMS (RS485).
• User-adjustable charging current and voltage
• Parallel operation up to 6 units.

Tech Specs

Specifications:

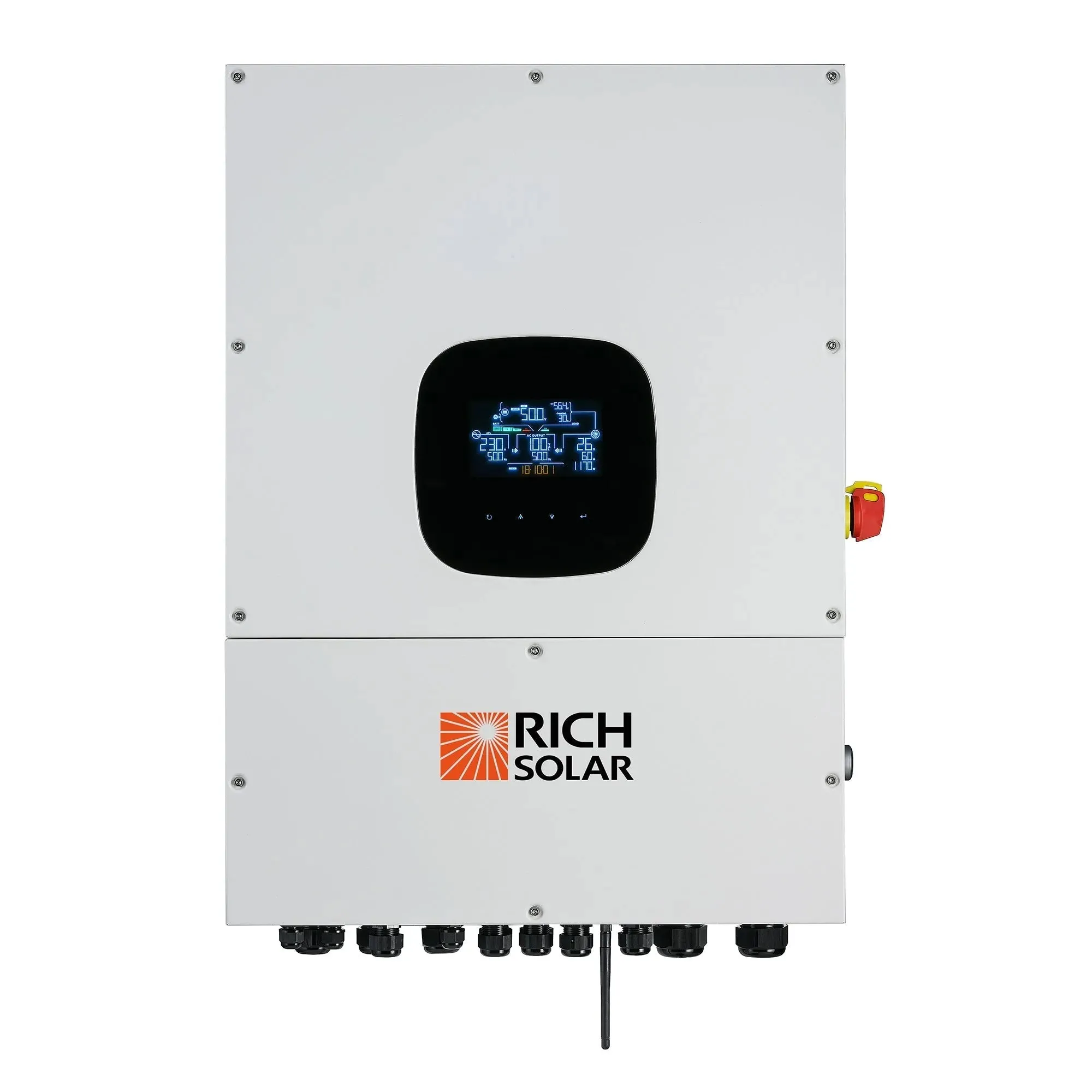

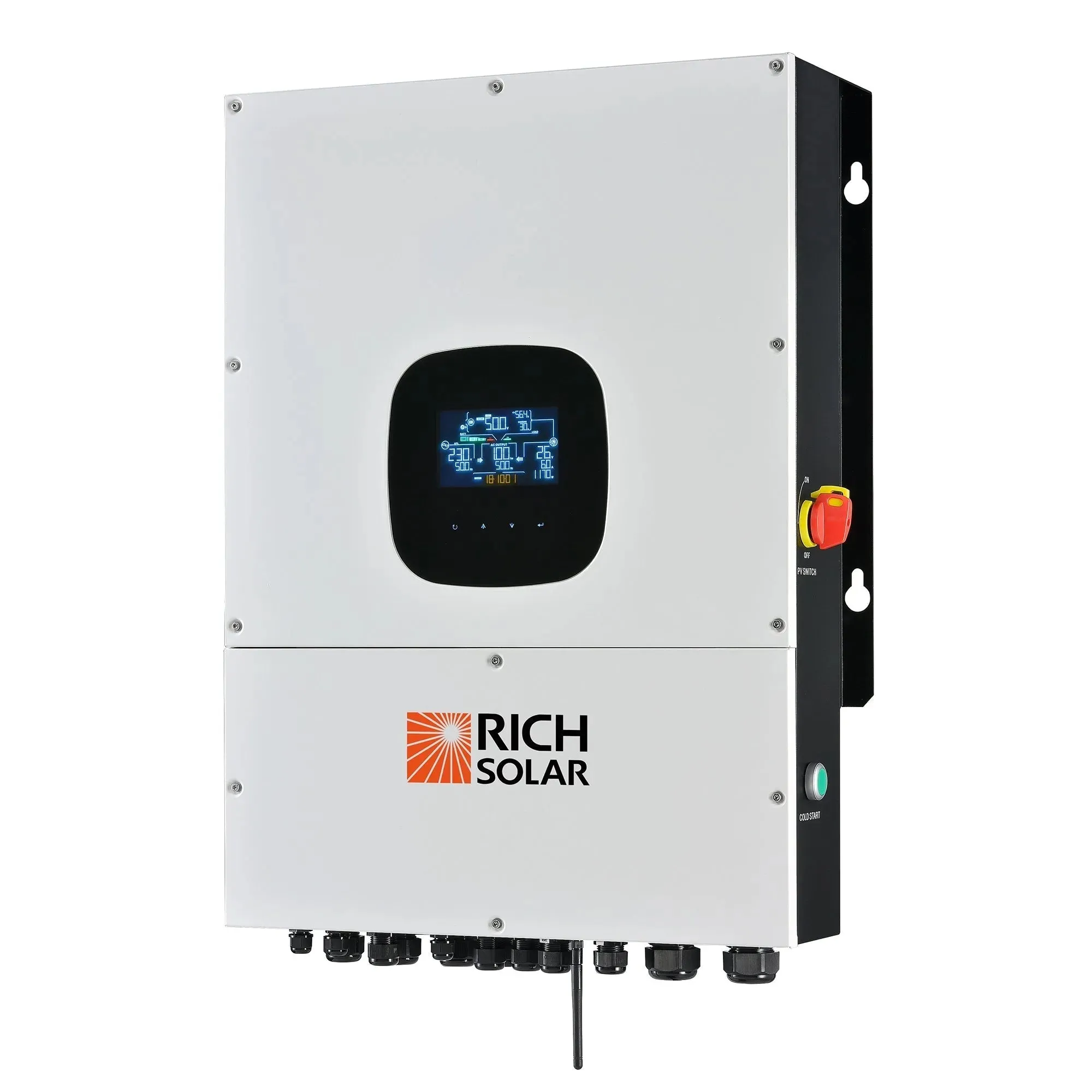

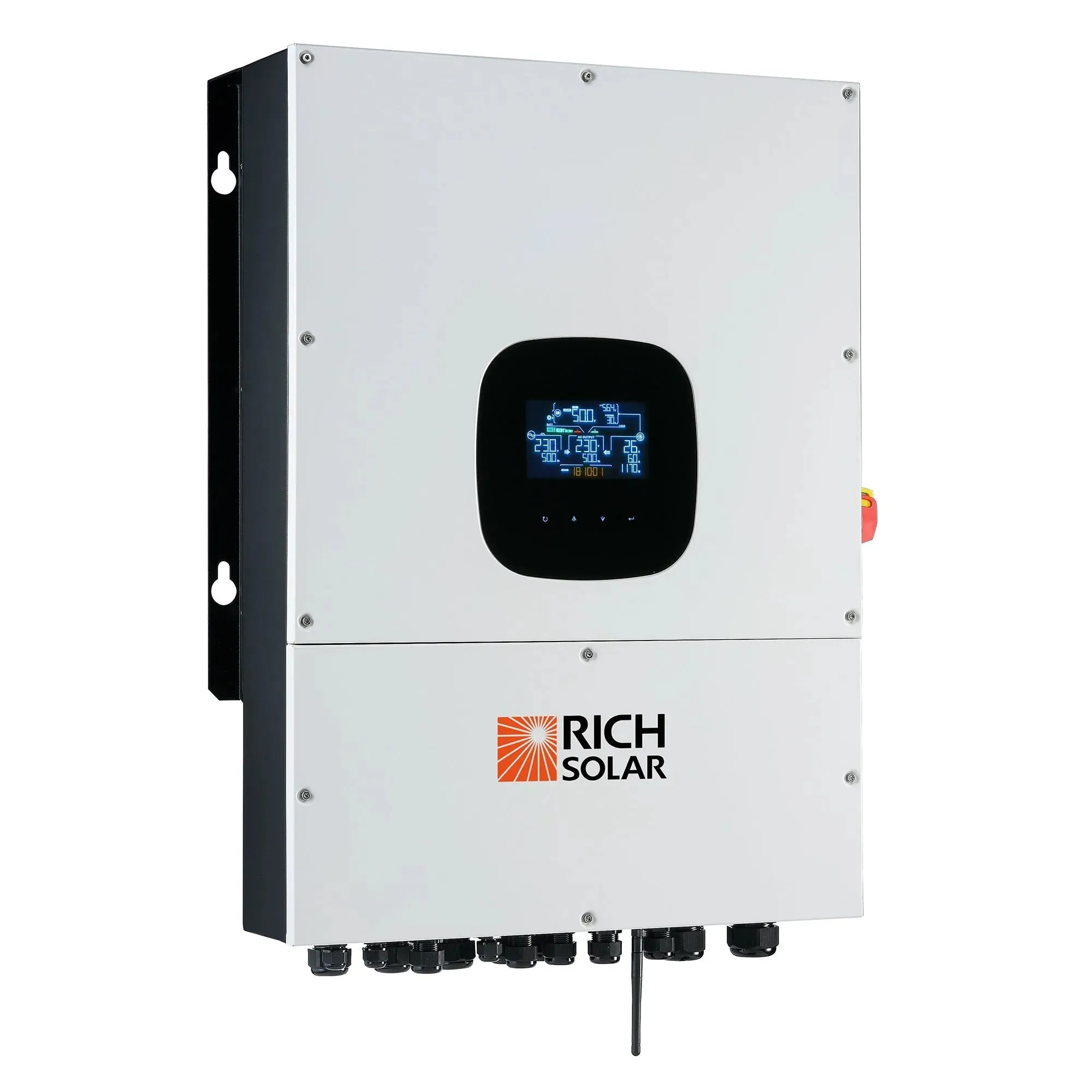

Model: RS-H12K
Maximum PV Input Power: 12000W
PARALLEL CAPABILITY: Yes, 6 units

INPUT

• Maximum PV input Power: 12000W
• Maximum DC Voltage: 600VDC
• Start-up Voltage/initial Feeding Voltage: 125VDC/160VDC
• MPP Voltage Range: 120VDC-550VDC
• Number of MPPT Trackers/Maximum Input Current: 2/18A

OUTPUT

• Rated Output Power: 10000VA/10000W
• Nominal Output Voltage: 120VAC(P-N)/208VAC(P-P)/240VAC(P-P)
• Output Voltage Range: 105.5-132VAC per phase
• Nominal Output Current: 41.5A per phase

BATTERY

• Battery DC Voltage Range: 40-62VDC
• Maximum Solar Charging Current: 200A
• Maximum AC Charging Current: 200A
• Maximum Charging Current: 200A

OPERATING ENVIRONMENT

• Operating Temperature Range: -25°C to 60°C(>45°C derating)
• Protection Degree: IP 65
• Communication Port: RS232,RS485,WI-FI, USB

PHYSICAL

• Dimension. DxWxH(mm): 215.5x575x715
• Net Weight: 45 (kg)/99.2(lb)
