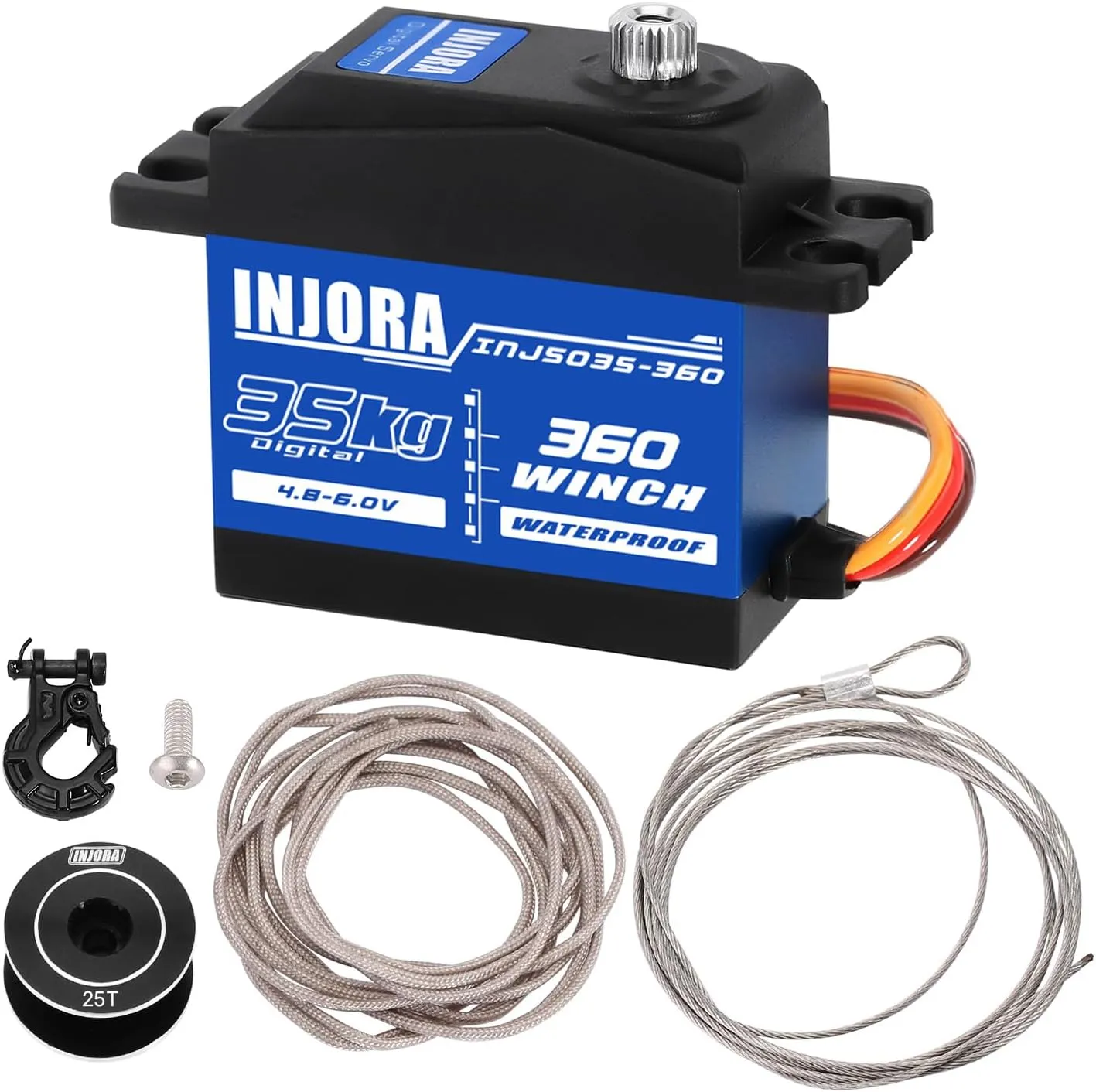

- High-performance digital servo with 360° continuous rotation for RC cars and robots.
- Core motor with a voltage range of 4.8V-6.0V for optimal power.
- Reinforced metal gears ensures durability and reduces noise for smooth operation.
- Winch spool made from high-quality aluminum material for strength and durability.
- Compatible with both 25T servos for versatile use in different models.
INJS035-360 Servo Specifications:
Quantity: 1pcs
The Dead Band: 4μs
Neutral position: 1500μs / 330hz
Motor: Core motor
500-2500us Angle: 360°
Voltage range : 4.8V-6.0V
Operating Speed(4.8V): 49rpm
Operating Speed(6.0V): 61rpm
Stall Torque(4.8V): 29kg.cm
Stall Torque(6.0V): 35kg.cm
Bearing: 2BB
Weight: 60g
Dimensions: 40.5X20X40.5mm (1.59X0.79X1.59in)
Length of Connector Cable: JR 300mm

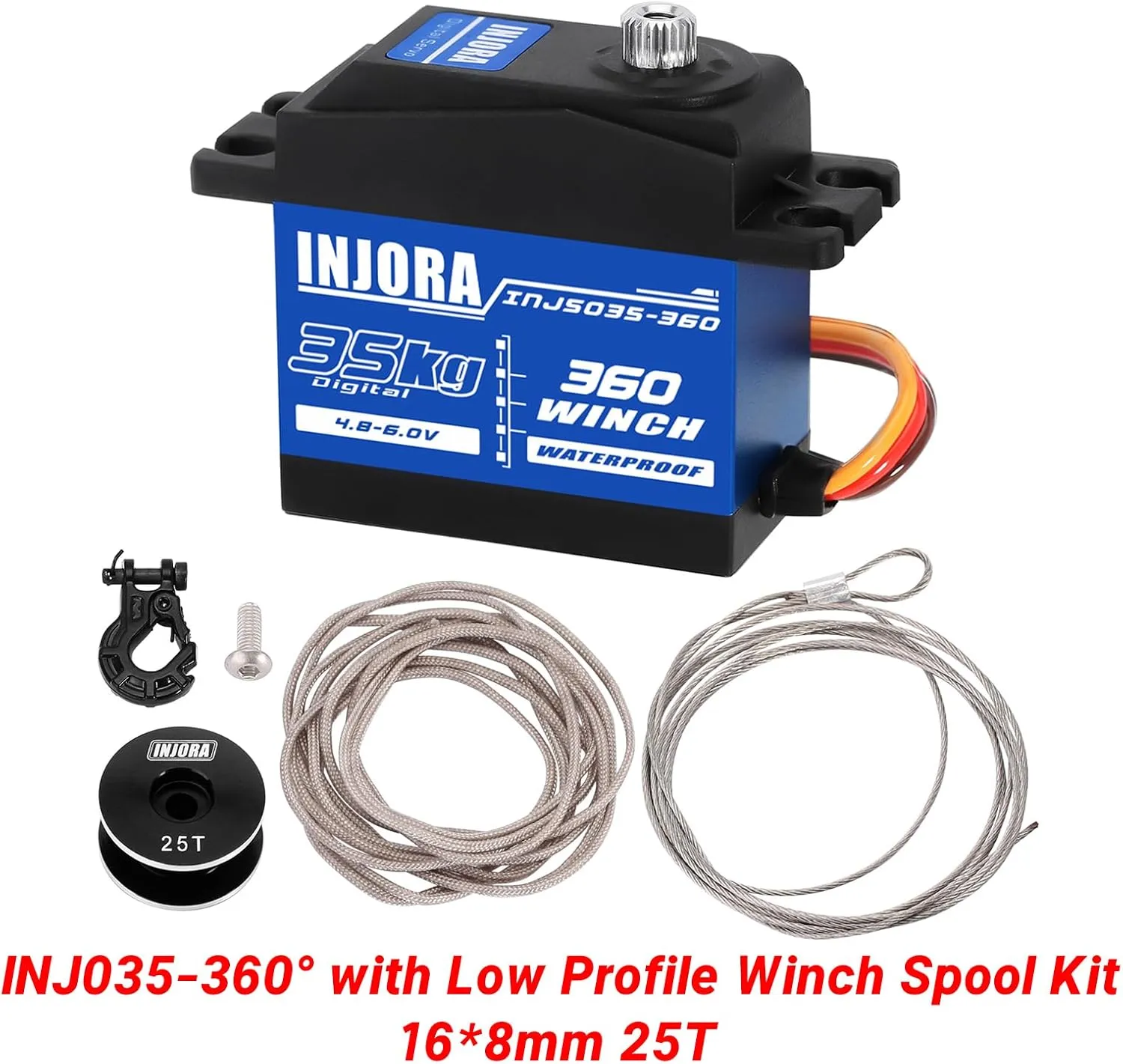

Winch Spool Specifications:
Materials: Aluminium
Kind: Standard (19*11mm), Low Profile(16*8mm)
Standard Winch Spool Teeth: 23T/25T
Low Profile Winch Spool Teeth: 25T
Mounting Screw: M3
Nylon Rope Length: 116cm (45.67in)
Steel Rope Length: 96cm (37.80in)
