- The Carbo Ratchamatic; is a load-sensing ratchet block that rolls freely in both directions under low loads and automatically engages the ratchet as loads increase
- Shifting between ratchet and light-air modes is seamless.
- Sheave Diam (mm)=75 Sheave Diam (in)=3
- Max Rope Diam (mm)=12 Max Rope Diam (in)=0.5
- BL (kg)=136 BL (lb)=300

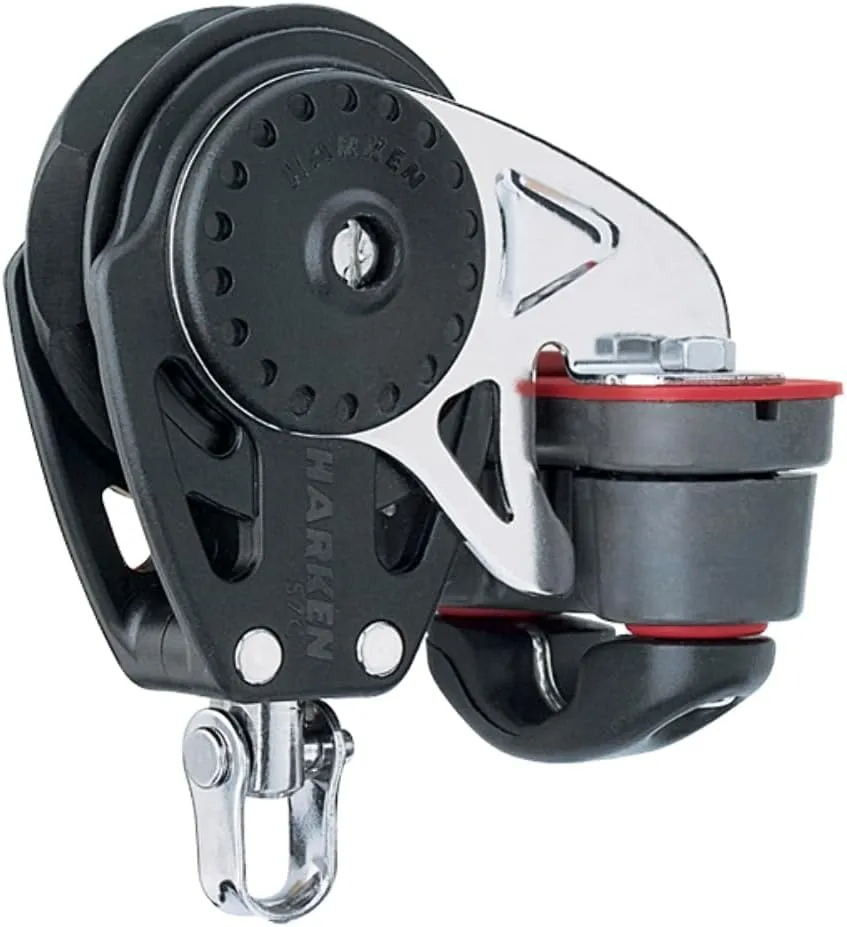

Harken 75mm Carbo Ratchamatic w/Cam Cleat 2683
Harken 75mm Carbo Ratchamatic w/Cam Cleat 2683
- Max. line dia. (mm): 12
- Shackle pin dia. (in): 1/4
- Shackle pin dia. (mm): 6
- Max. working load (lb): 300
- Max. working load (kg): 136
- Breaking load (lb): 750
- Breaking load (kg): 340
- Holding power w/180 degree wrap 50 lb (23 kg): 15:1
- Description: Single / 150 Cam-Matic
- Sheave dia. (in): 2 15/16
- Sheave dia. (mm): 75
- Length (in): 5 7/16
- Length (mm): 138
- Weight (oz): 15.5
- Weight (g): 440
- Max. line dia. (in): 7/16
