- The Carbo Ratchamatic; is a load-sensing ratchet block that rolls freely in both directions under low loads and automatically engages the ratchet as loads increase
- Shifting between ratchet and light-air modes is seamless.
- Sheave Diam (mm)=75 Sheave Diam (in)=3
- Max Rope Diam (mm)=12 Max Rope Diam (in)=0.5
- BL (kg)=341 BL (lb)=752

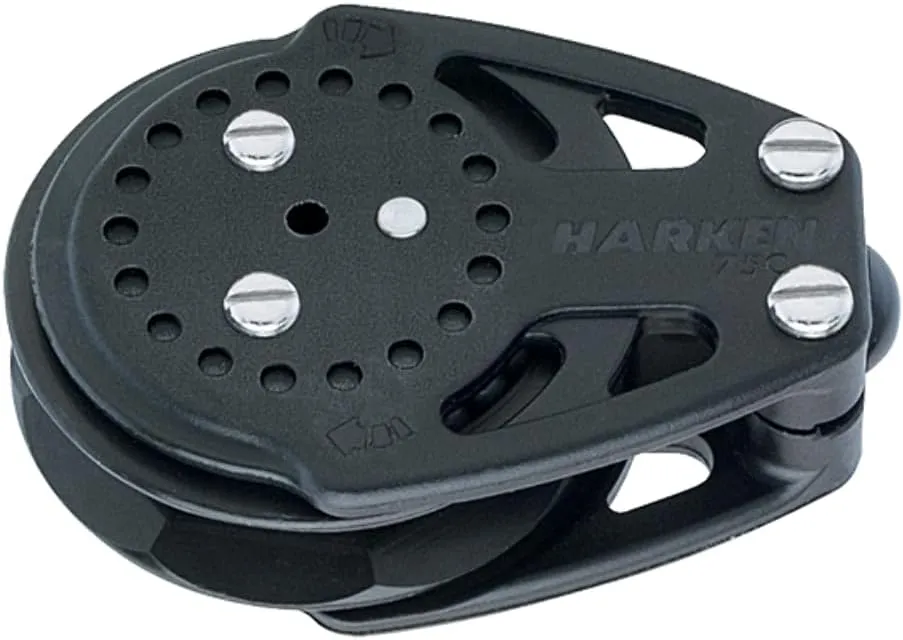

Harken 75mm Carbo Ratchamatic Cheek Block 2682
Harken 75mm Carbo Ratchamatic Cheek Block 2682
- Description: Cheek**
- Sheave dia. (in): 2 15/16
- Sheave dia. (mm): 75
- Length (in): 4 1/16
- Length (mm): 103
- Weight (oz): 6.5
- Weight (g): 184
- Max. line dia. (in): 7/16
- Max. line dia. (mm): 12
- Shackle pin dia. (in): -
- Shackle pin dia. (mm): -
- Max. working load (lb): 750
- Max. working load (kg): 341
- Breaking load (lb): 3000
- Breaking load (kg): 1361
- Holding power w/180 degree wrap 50 lb (23 kg): 15:1
