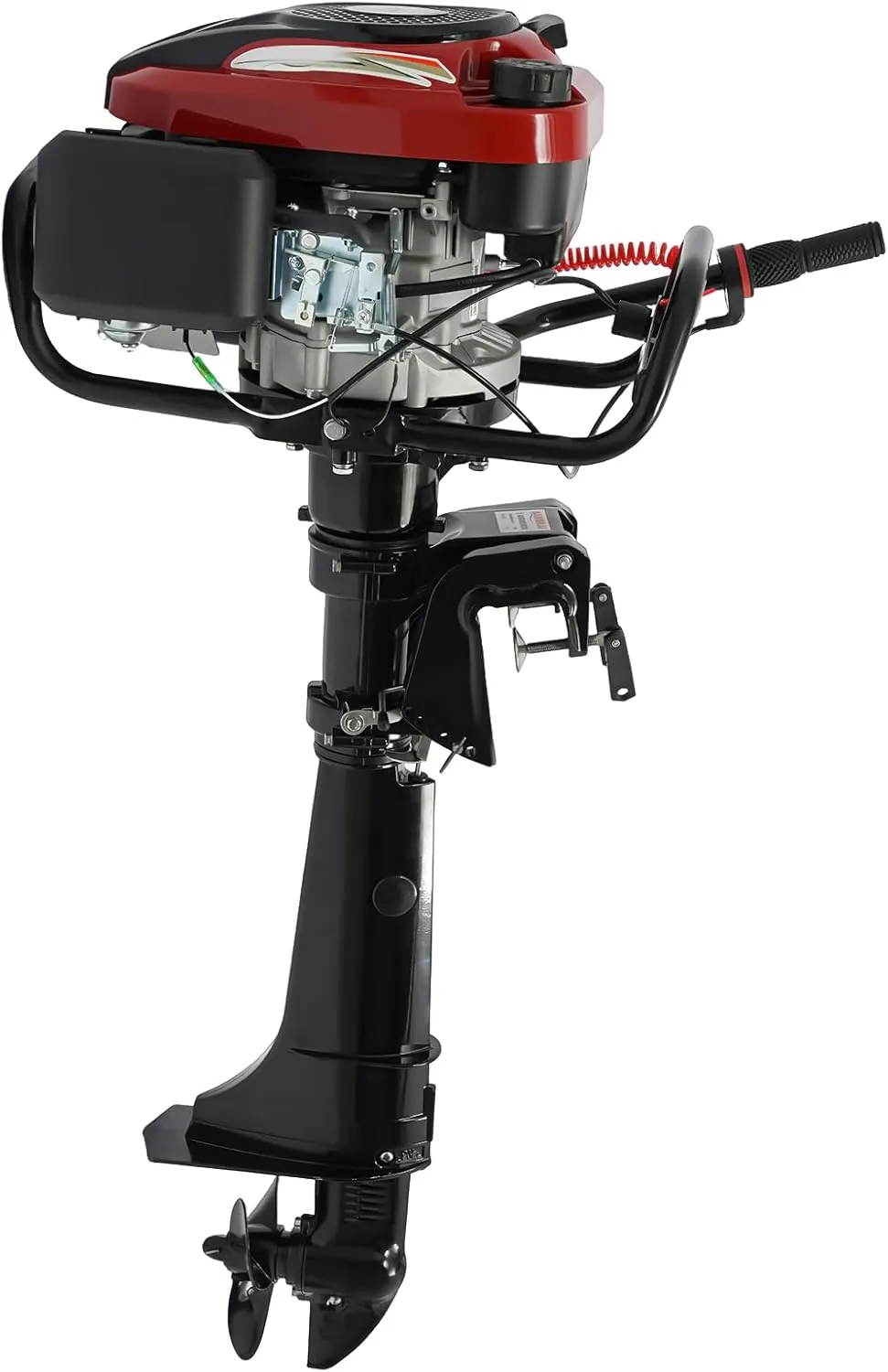

- Outstanding Performance: The 4-stroke 7hp engine with 4500-6000r/min can provide a speed of 6.21-9.32miles/h to give you a comfortable and labor-saving sailing experience. Moreover, the three-blade propeller and streamlined design can reduce water resistance and provide greater power during operation.
- Easy to Operate: This product has three gears: forward, neutral and reverse. By controlling the throttle lever and turning the throttle handle, you can freely control the navigation direction, and achieve infinite speed change, or you can cruise at a constant speed to enjoy different cruising experiences according to your needs.
- High Safety: The air cooling mechanism helps cool the engine for longer life. Suspension tilt adjustment pins can be used to adjust the boat's sailing attitude at any time to keep it sailing smoothly. Moreover, the anti-swirl plate reduces swirl, allowing you to sail more safely. The emergency flameout rope can help you to turn it off quickly.
- Stable Engine: The dense heat dissipation holes on the casing help the engine dissipate heat quickly and promptly. Moreover, the air filter helps to filter impurities in the air and reduce the wear and tear of dust and sand on the engine, which can achieve stable machine operation.
- Low Fuel Consumption: It uses an advanced TCI ignition mechanism and a high-quality carburetor that allow the fuel to burn well and consume only 0.53 gal/hour, which not only saves fuel but also reduces costs.
- Application This outboard engine is suitable for inflatable boats, iron boats, plastic boats, fiberglass boats, wooden boats, etc. with a stern plate height of 17.72-21.65 inches. It is widely used in fields such as fisheries, aquaculture, water transportation, net fishing, luring, outboard backup, outings, river cleaning/maintenance, and outdoor exploration.
Specification
Material: Aluminium Alloy, Rubber
Process: Spray Painting
Color: Black
Type: 4-stroke 7HP
Displacement: 196CC
Gear Ratio: 2.08(27:13)
Cylinder: 1
Max. Output: 5.1kw
Rotation: 4500-6000r/min
Speed: 10-15km/6.21-9.32miles/H
Gear Positions: F-N-R
Ignition Mechanism: TCI
Cooling Mechanism: Air-cooling
Control Mechanism: Tiller Control
Starting Mechanism: Manual Start
Recommended Fuel: #92 Lead-free Gasoline
Recommended Engine Oil: Four Stroke Engine Oil
Trim and Tilt Mechanism: Manual Tilt
Max. Fuel Consumption: 2L/0.53gal/H
Standard Fuel Tank Capacity: 1.4L/0.37gal
Bore Stroke: 7*5.1cm/2.76*2in
Adaptive Transom Plate Height: 50.5cm/19.88in
Recommended Propeller Range: 3-7 1/2''x5''
Product Size: 52*52*120cm/20.47*20.47*47.24in
Outboard Motor Head
Package Size: 41.1*39*38cm/16.18*15.35*14.96in
Gross Weight: 18.31kg/40.37 lbs
Net Weight: 14kg/30.86 lbs
Outboard Motor Shaft
Package Size: 95*42.5*30cm/37.4*16.73*11.81in
Gross Weight: 14kg/30.86 lbs
Net Weight: 11.2kg/24.69 lbs
Package Included
1* Outboard Motor
1* Funnel
1* English Manual
All Accessories for Installation
Notes
1. Please note that all the gasoline machines are noisy, currently we did not test the decibel , but the noise is the same as the motorcycle, so it is a normal phenomenon.
2. Please note that to avoid damage, our outboard motor will be shipped in two packages.
3. Please carefully read the manual and product labelling and strictly follow the precautions to have a better experience.
3. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
