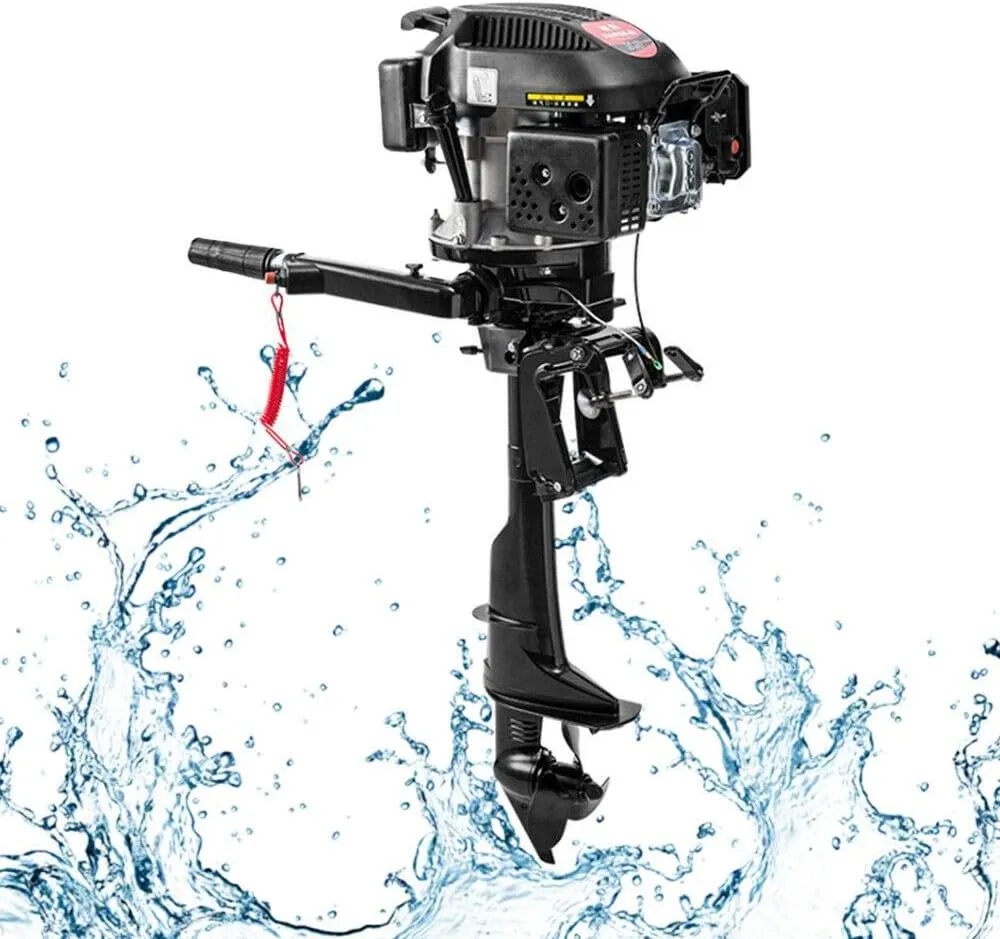

- High-quality Material: Crafted from aluminum alloy with spray painting technology, this outboard motor boasts excellent corrosion, wear, heat, impact, and deformation resistance, ensuring reliable performance in freshwater and saltwater.
- Outstanding Performance: Powered by a 4-stroke 6hp short shaft outboard motor with 4500-5500r/min, delivering speeds of 4-15km/h, this features a three-blade propeller and streamlined design for a labor-saving sailing experience.
- Easy to Operate with Low Fuel Consumption: With forward and neutral gears, a throttle lever for infinite speed control, and a TCI ignition system consuming just 0.26 gal/hour, this engine offers easy navigation and fuel efficiency.
- High Safety: Equipped with an air cooling system, suspension tilt adjustment pins, an anti-swirl plate, an emergency flameout rope, and automatic overheat shutoff, this outboard motor ensures safe, smooth sailing.
- Stable Engine with Easy Installation: Dense heat dissipation holes and an air filter maintain stable operation, while the simple structure and complete accessories allow quick installation on your boat.
Application
This outboard engine is suitable for inflatable boats, iron boats, plastic boats, fiberglass boats, wooden boats, etc. with a stern plate height of 17.32 inches or less. It is widely used in fields such as fisheries, aquaculture, and outdoor exploration.
Specification
Material: Aluminium Alloy, Rubber
Color: Black
Type: 4-stroke 6HP
Displacement: 140CC
Gear Ratio: 1:1.5(16/24)
Cylinder: 1
Max.Output: 3.75kw
Rotation: 4500-5500r/min
Speed: About 4-15km/h(2.49-9.32Miles/h)
Gear Positions: F-N
Ignition System: TCI
Cooling System: Air-cooling
Control System: Tiller Control
Starting System: Manual Start
Control System: #92 Gasoline
Recommended Engine Oil: Four Stroke Engine Oil
Mixing Ratio: Pure Gasoline
Trim and Tilt System: Manual Tilt
Fuel Consumption: About 1L/H(0.26gal/H)
Standard Fuel Tank Capacity: 1.2L/0.32gal
Bore Stroke: 6.1*4.8cm/2.4*1.89inch
Shaft Length: 38.1cm/15inch
Adaptive Transom Plate Height: ≤44cm/17.32inch
Recommended Propeller Range: 3-7 1/2''x5''
Propeller Diameter: 16cm/6.3in
Joystick Length: 39cm/15.35in
Handle Length: 15cm/5.91in
Oil Filling Pipe Length: 13cm/5.12inch
Product Height: 107cm/42.13inch
Gross Weight: 24.45kg/53.9lbs
Net Weight: 20.95kg/46.19lbs
Product Size: 38*33*107cm/14.96*12.99*42.13inch
Package Size: 112.5*46*47.5cm/44.3*18.11*18.7inch
