Brand: Unbranded

Type: Does Not Apply

Number in Pack: 2

Item Height: 8mm

Model: CN3065

MPN: Does Not Apply

Item Length: 40mm (4cm)

Country/Region of Manufacture: China

Item Width: 20mm (2cm)

Colour: Blue

UPC: Does not apply

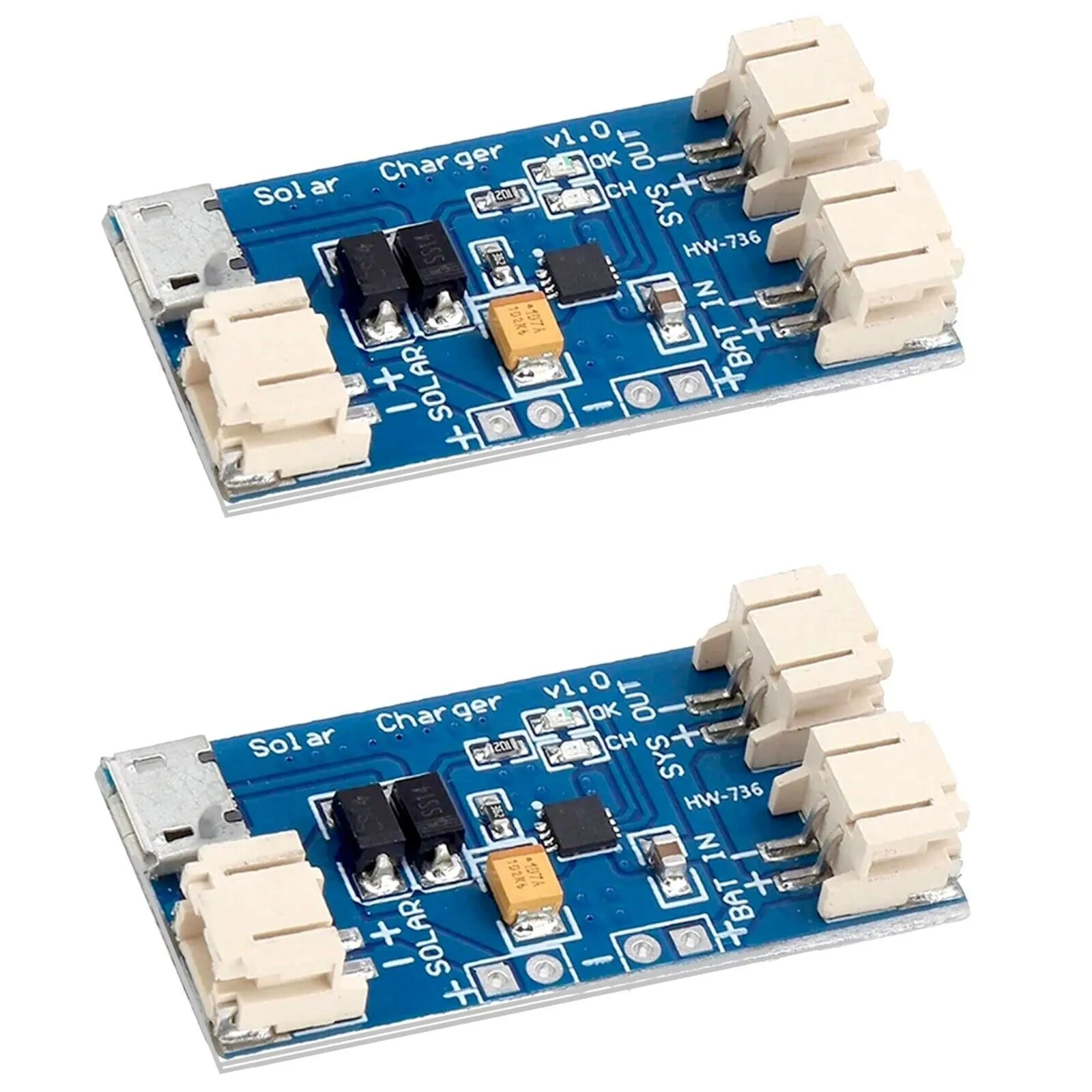

2 x Mini Solar Lipo Board Lithium Battery Charger USB CN3065 Module 4.4V-6V DIY Sent With Australia Post Regular Letter NO Tracking Number Included

Description

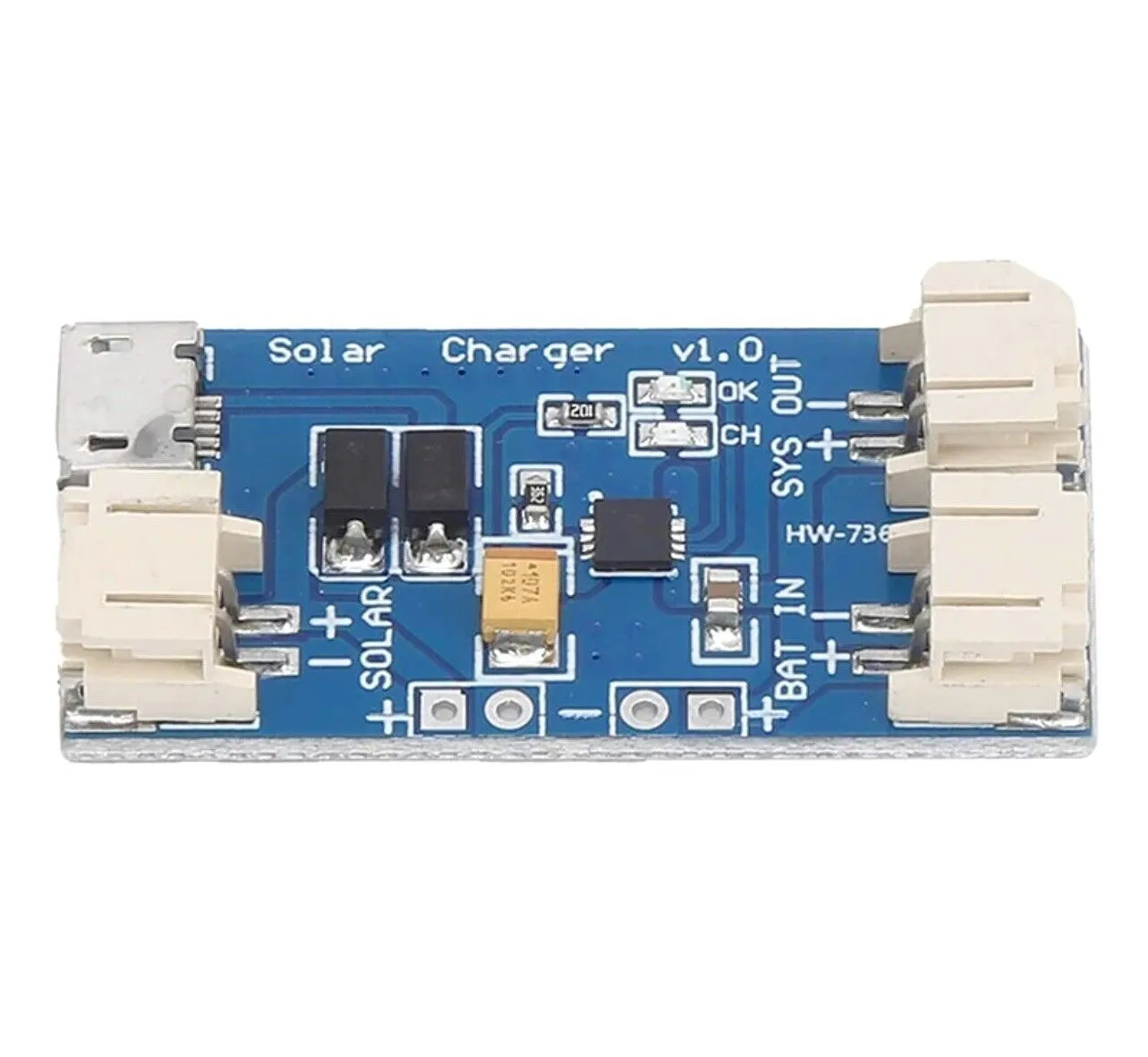

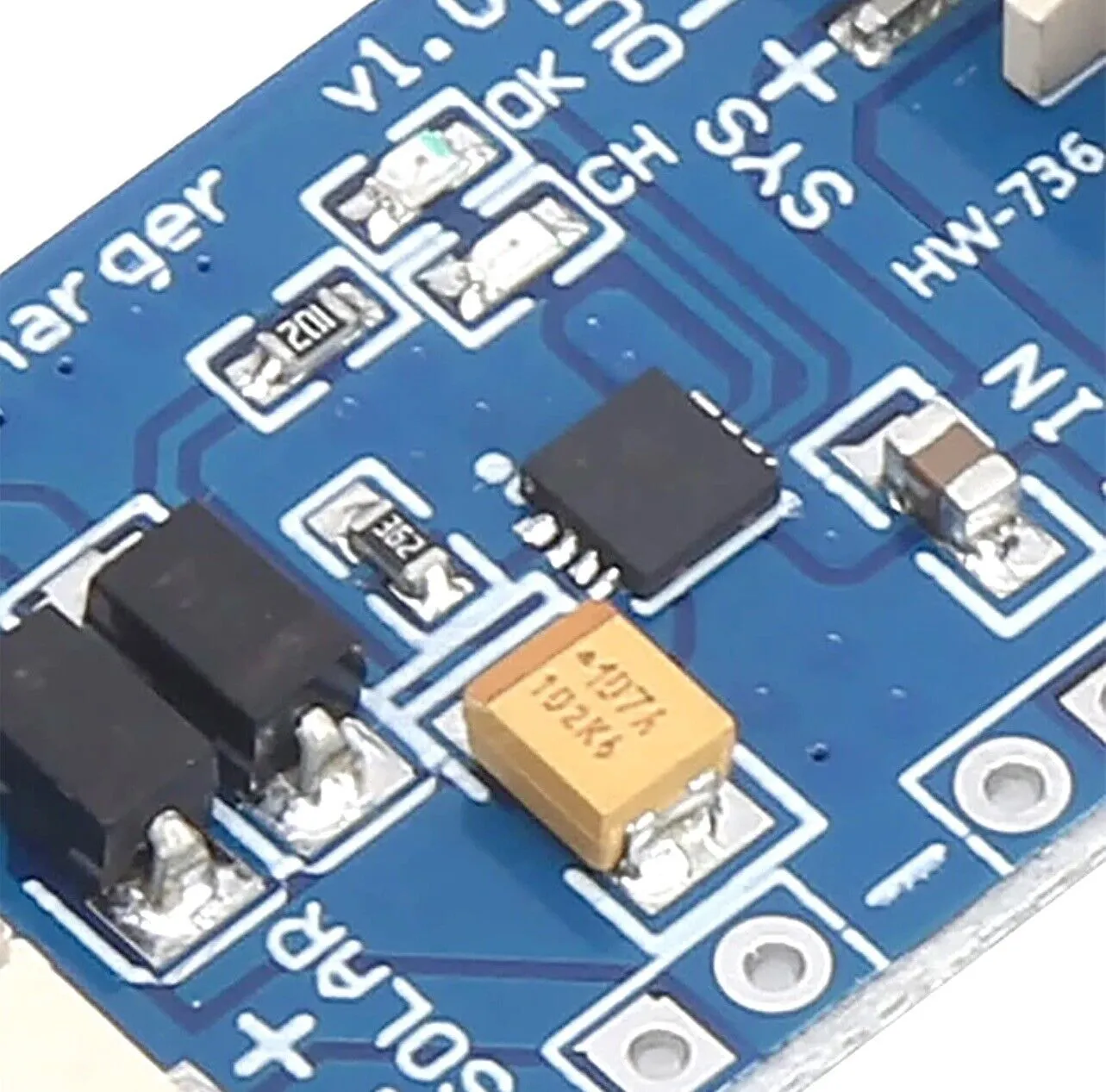

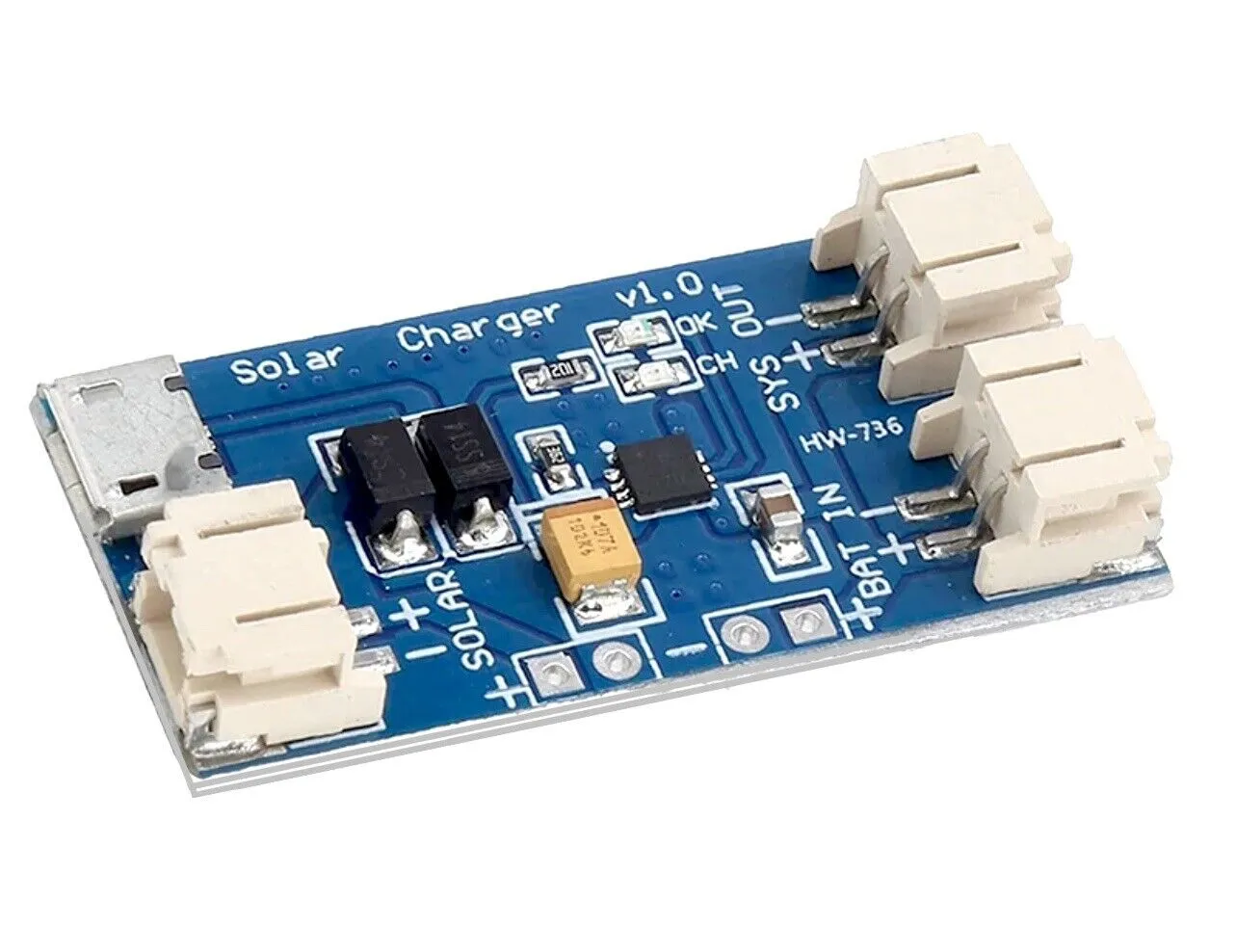

This is an ultra-mini Solar Lipo charger based on CN3065---a lithium battery charge management chip.

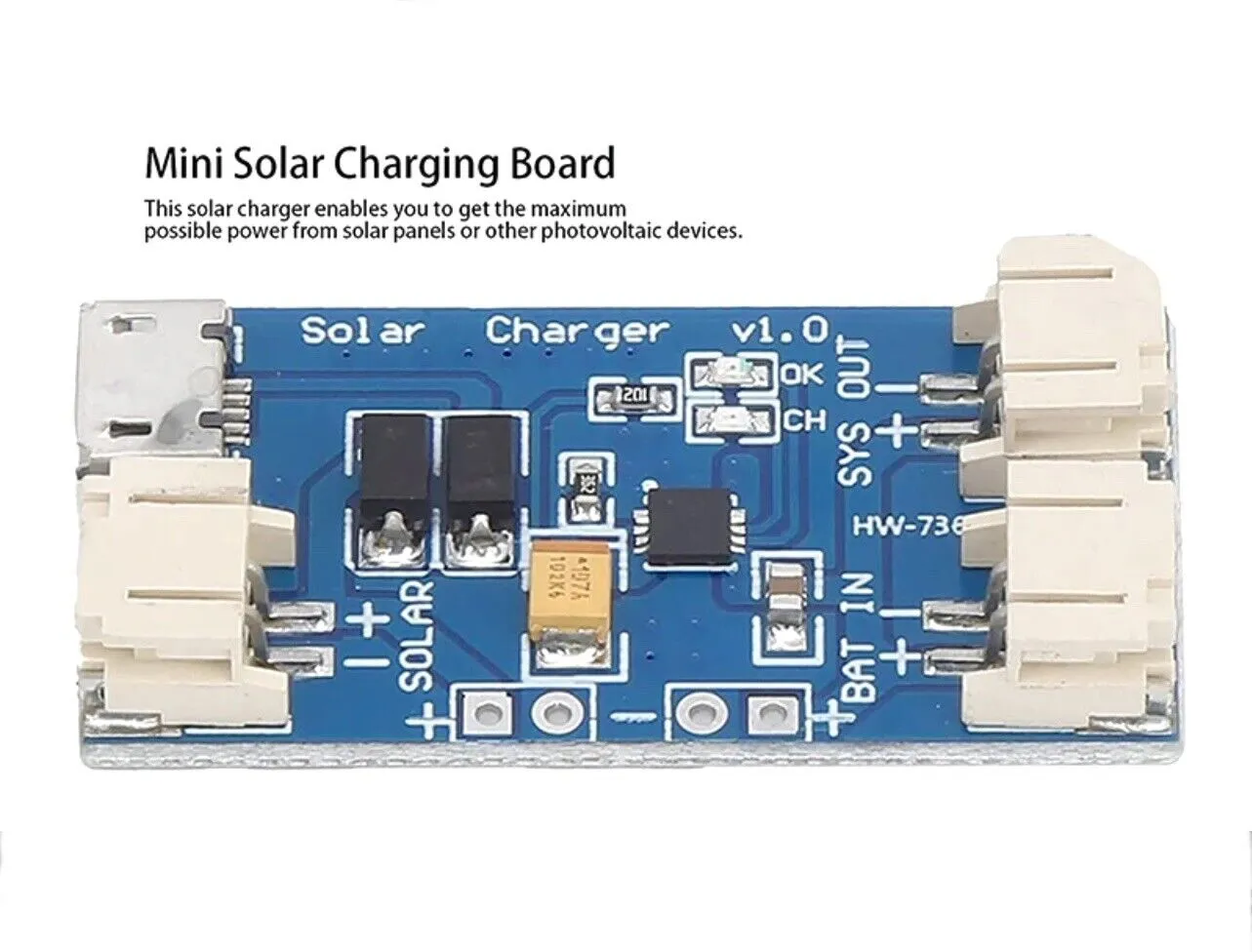

This solar charger enables you to get the maximum possible power from a solar panel or other photovoltaic device and use a rechargeable LiPo battery. It's also easy to set up, just plug the solar panel into one side of the solar charger, the battery on the other, and it starts charging!

The output of the solar charger is used to charge a single polymer lithium-ion battery. The load should be connected in parallel with the battery. By default, solar charging is set to a maximum charging current of 500mA with a maximum recommended input of 6V (4.4V minimum). It is not recommended to charge the battery above rated capacity.

Feature:

Solar panel input: 4.4-6V

Maximum charging current: 500mA

Interface: 2-pin JST connector (or PH2.0)

Short circuit protection

Continuous charge current up to 500mA

Battery status indication (red: charging, green: charged)

Supports USB charging (Micro-USB connector)

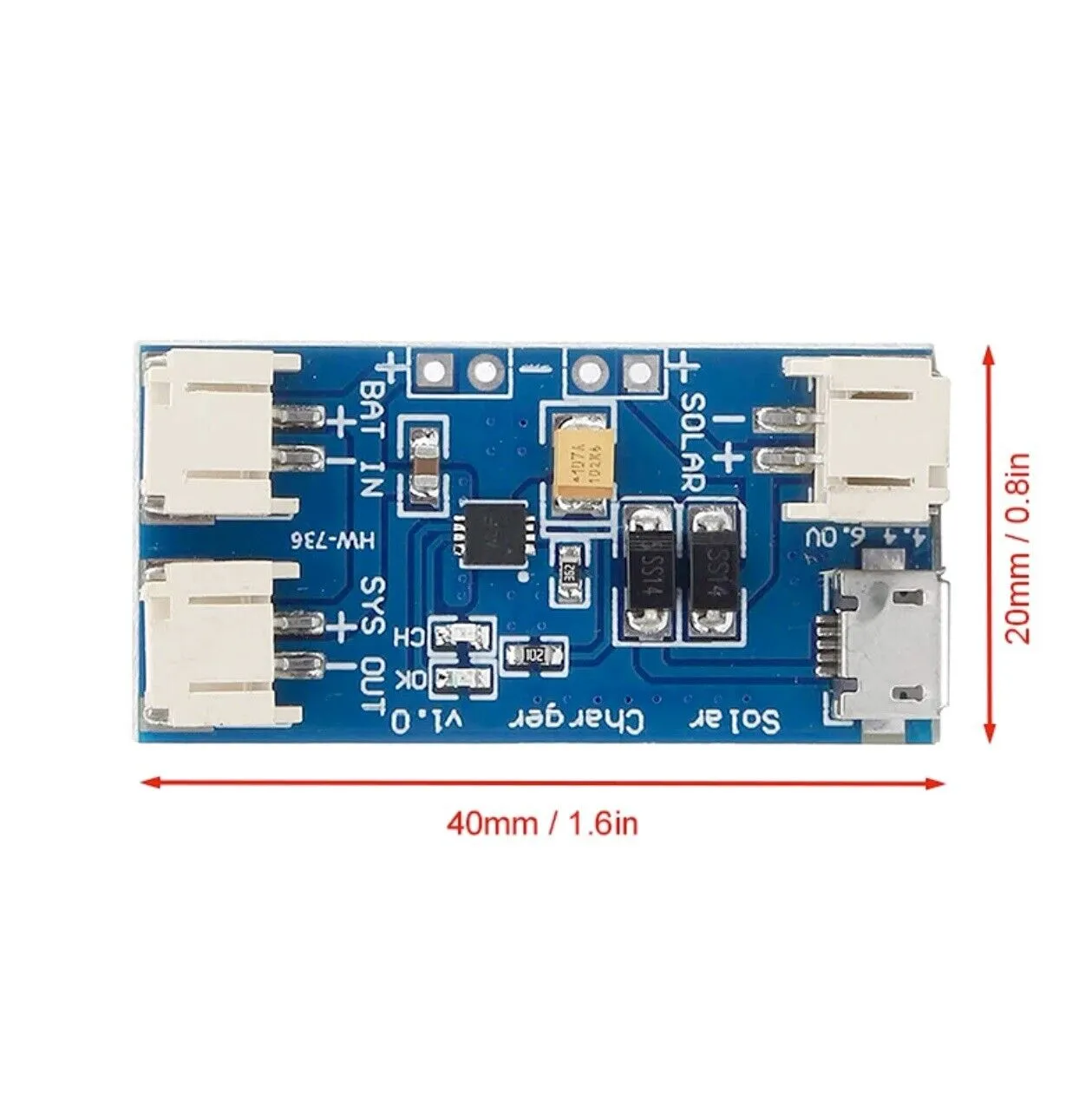

Dimensions: 2cm x 4cm
